With the strongest boom in its class, a max capacity of 10,000 lbs and the ability to reach 45 ft, the Gradall 534D10-45 telehandler gives you the power together with amazing speed and agility. nd with a 45-foot lift height and a full range of attachment options, you'll be able to handle a wide variety of jobs.
Gradall Telehandlers are widely recognized for their strength, reliability, and low cost of ownership. It's these machines' 90-degree rear-pivot steering that truly sets Gradall telehandlers apart and gives its operator unmatched maneuverability in the tightest work areas. A mid-mounted engine provides better weight distribution, resulting in effective operation in mud, rocks or sand.
Gradall telehandlers go where other telehandlers fear to tread; just watch your productivity soar. Gradall operators have a clear view of the job site while enjoying the comfort and efficiencies designed into the spacious machine cabs. Plus, all Gradall models can be equipped with a wide selection of versatility-building attachments. For the high level performance you need to turn a profit, nothing outmaneuvers a Gradall.
Maneuverability & Precision Handling
90° rear-pivot steering for negotiating narrow aisles or crowded job sites.
Mid-mounted engine provides balanced weight distribution, allowing operation in mud, rocks or sand.
Long wheelbase for low center of gravity and stability on rough terrain.
No-shift hydrostatic drive train provides the precision handling operators need to inch the machine into exact positions for critical load placements.
Gradall's Versatility & Efficiency:
Quick-Switch attachments turn your base machine into a versatile productivity tool for dozens of job site challenges. Spacious and comfortable operator cab provides protection and a clear view. Convenient single joystick control for boom lift and crowd.
Gradall's Strength & Reliability:
Higher capacities throughout lift range.
Rugged design and proven durability for lower cost of operation

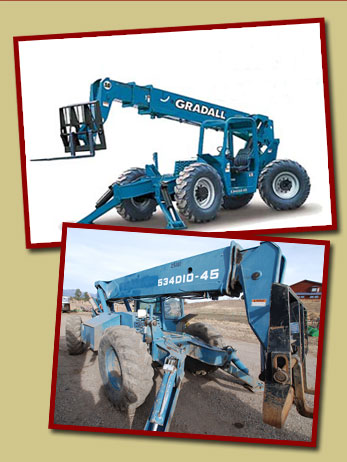

Gradall's 534D10-45 Telehandler Features:
10,000 lb (4,082 kg) capacity
90° rear-pivot steering
Up to 45 ft (13.7 m) lift height
Ultra-strong boom allows for a full range of attachments
Single joystick control for boom lift and crowd
No-shift hydrostatic drivetrain
Gradall's 534D10-45 Telehandler Technical Specs
Rated Capacity @ 24 in. (610 mm) Load Center = 10,000 lb (4,536 kg)
Maximum Lift Height = 45 ft (13.7 m)
Capacity @ Maximum Lift Height = 7,000 lb (3,175 kg)
Maximum Reach = 31 ft 6 in. (9.6 m)
Capacity @ Maximum Reach =*4,500 lb (2,041 kg)
Approximate Operating Weight = 25,300 lb (11,476 kg)
